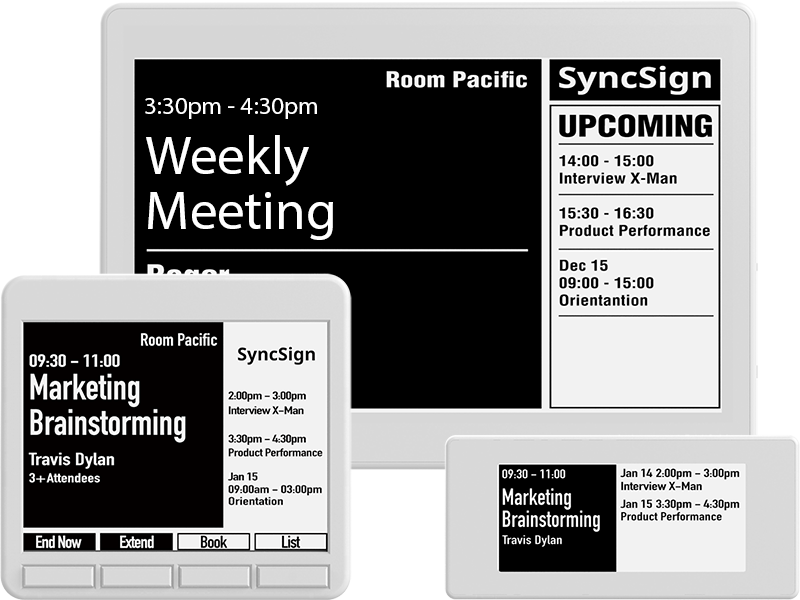

SyncSign

ePaper Display

Effortless Installation Digital Signage

  • Sync with Calendars or Web Services
  • 365-Day Battery Life
  • Self-Install in Minutes
  • Flexible Templates & Open API/SDK

Synchronises with Calendars

SyncSign has integrations for Google & Outlook calendars. Employees can make reservations right from the familiar desktop software, web browser or mobile apps, making it easy to schedule a room on the fly while encouraging team collaboration.

Bring Clarity to Your Workplace

SyncSign e-paper display brings a whole new way to visualize daily schedule of your workplaces.

It blends enterprise-grade hardware with proprietary, cloud-based software. It delivers work-space insights at your fingertips — all to help optimize employee productivity and work-space efficiency.

Highly Customizable

  • Select the layout templates we offered.
  • Replace our regular content with custom information on display.
  • Customize your corporate branding or logo across all the devices.
  • The open API/SDK brings more possibilities.

Eco-friendly & Sustainable

True Wireless

2.4GHz two-way communication, no cables required.

Battery Powered

At least 1-year battery life, benefits from the e-ink screen and new connectivity technology.

Green Technology

Eco-friendly and sustainable. Get rid of any paper or printing.

Lowest TCO

Reduce total cost of ownership by eliminating installation and maintenance fee.​

Battery Life Comparison

SyncSign
> 365 days
Other (iPad, Tablet)
0.5 day

SyncSign Display

Other (iPad, Tablet)

E-Paper Screen

0.0001 Watt

LCD/LED Screen

2 Watt

802.15.4 Mesh

0.0005 Watt

802.11 Wi-Fi

0.5 Watt

Built with Latest IoT Technology

Low Power Mesh Network

  • SyncSign doesn't use the traditional Wi-Fi connection in order to save power.
  • Incorporate power saving mechanisms. Each display keeps polling Hub for new information every 10 seconds and goes to deep sleep in between.

Better Coverage

  • SyncSign can cover 20,000 Sq. Ft. space (Concrete, masonry or brick wall may reduce its radio coverage).
  • Expand the coverage with more Hubs or Range Extenders.
  • 2.4GHz ISM band usage ensures license free product deployment worldwide.

Secure System

  • Only authorized nodes are allowed to join the mesh network.
  • All transmissions between display and hub are encrypted with AES-128.
  • The connection between hub and cloud server are TLSv1.3 protected.

Managed with Hub

  • Uplink with Ethernet or Wi-Fi.
  • Ultra low cost bridge between local mesh network and Internet.
  • Manage up to 16 individual displays in a single mesh network.

On-Premise Deployment

  • Mini server available for on-premises deployment(currently only support MS Exchange integration).
  • All your data is located within your in-house server provides more peace of mind.

Open API / SDK

  • With Hub SDK, developers can easily write Python code and deploy the application to the hub.
  • Integrate with IFTTT or other web services with open API.

- Setup in Minutes -

SyncSign Display is battery-powered and truly wire-free, so it’s simple to place, position and move within any environment.

Step 1.
Mount the bracket on the surface where you want to place.

Step 2.
Put the SyncSign on the bracket, and the super magnet on the back will stably hold the display.

Step 3.
Pair the display with a SyncSign Hub (over secure mesh network).

Step 4.
Sign in your calendar administrator account and bind each display to a calendar. Now you are good to go.

- Specifications -

Shell Color

Screen Colors

Viewing Angle

Resolution

Active Area

Pixel Pitch

DPI

Working Temp.

UI Buttons

Touch Screen

UI Buttons

Battery

Battery Life

Signal Booster

Power

Connectivity

SKU

7.5 Inch

Close to 180°

880 * 528

163.24 * 97.94(mm)

0.19 * 0.19(mm)

137

0 ~ 30 °C

N/A

N/A

137

4000mAh built-in rechargeable polymer

1-year standby

Built-in, up to 20dBm

DC 5V / 0.5A, USB Type C

2.4GHz Wi-Fi + 802.15.4
( Dual mode )

D75R (Black+White+Red)
D75Y (Black+White+Yellow)

Shell Color

Screen Colors

Viewing Angle

Resolution

Active Area

Pixel Pitch

DPI

Working Temp.

UI Buttons

Touch Screen

UI Buttons

Battery

Battery Life

Signal Booster

Power

Connectivity

SKU

4.2 Inch

Close to 180°

400 * 300

84.80 * 63.60(mm)

0.21 * 0.21(mm)

119

0 ~ 50 °C

4

N/A

119

2 x CR3032, replaceable

1-year standby

N/A

N/A

802.15.4 only

D42B (Black+White)

Shell Color

Screen Colors

Viewing Angle

Resolution

Active Area

Pixel Pitch

DPI

Working Temp.

UI Buttons

Touch Screen

UI Buttons

Battery

Battery Life

Signal Booster

Power

Connectivity

SKU

2.9 Inch

Close to 180°

296 * 128

66.85 * 29.10(mm)

0.23 * 0.23(mm)

112

0 ~ 50 °C

N/A

N/A

112

2 x CR2032, replaceable

1 year standby

N/A

N/A

802.15.4 only

D29R (Black+White+Red)
D29Y (Black+White+Yellow)

Build for Efficiency & Certainty
